Dexter 560 4x4
-
Model Dexter 4x4
-
Basic vehicle Ford Transit
-
Basic motorisation 130 HP engine
-
Technically permissible overall weight* 3.500 kg
* For safety reasons, the "technically permissible maximum laden mass" stated in the vehicle registration document must not be exceeded under any circumstances.
-
Weight in ready-to-drive state** 3.162 kg
** Dimensions in ready-to-drive state as per EU Directive No. 1230/2012: Vehicle with standard equipment according to manufacturer's specifications including driver (75 kg), 90% of filling quantity for fuel, 100% for water as well as gas (aluminium gas bottle 5 kg), without special equipment.
-
Bed shape Double bed
-
Total length 5.980 mm
-
Sleeping areas 2
-
Seating areas 4

Please click the button below to load the content from Matterport Panorama.
With the loading of the panorama you accept the privacy policy of MatterPort
Mehr erfahren
Basic Vehicle
- Ford Transit
- EURO 6D Final incl. soot particle filter
- Driver and Passenger Airbag
- ABS / ESP
- Cruise control
- Radio preparation + radio
- Power steering
- Adjustable headlights
- Immobiliser
- 3-point seat belt system
- Electric window controls at the front
- Electrically adjustable heated exterior mirrors
- Remote control central locking system
- Decorative wheel trims
- Fix & Go breakdown kit
- Rear bumpers black
- Leather steering wheel
Superstructure Exterior
Electrical Supply
- Automatic electr. charger for super structure / vehicle battery
- CEE external connection for 230 V with automatic circuit breaker
- Ground fault circuit interrupter
- On-board control panel indicating all important functions
- 3x 230 V Sockets
- 1x 12V Sockets
- 2x USB Sockets
- 2/1 Adjustable reading spotlights and USB ports
Model: | Dexter 560 4×4 |
---|---|
Basic vehicle | Ford Transit |
Basic motorization | 2.0 ltr. 96 kW (130 HP) |
Fuel tank | 75 ltr diesel + 24 Ltr Ad Blue |
Technically permissible total weight* | 3500 kg |
Mass when ready to drive** | 3162 kg |
Permissible gross train weight with standard motor / higher motorization | 6000 kg |
Trailerload, braked*** with standard motor / higher motorization | 2800 kg |
Total length | 5980 mm |
Total width | 2059 mm |
Total height | 2780 mm |
Internal width | 1870 mm |
Standing height | 1970 mm |
Wheel base | 3750 mm |
Tyres | 235/65 R16 |

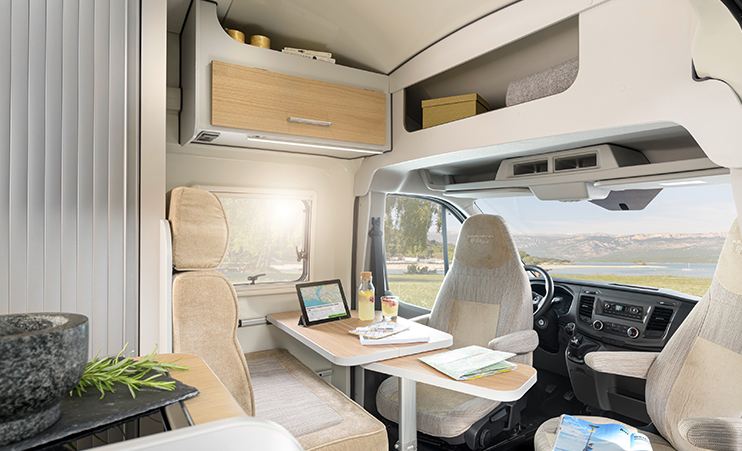

Bed conversation seating unit | 1723 x 1077 mm |

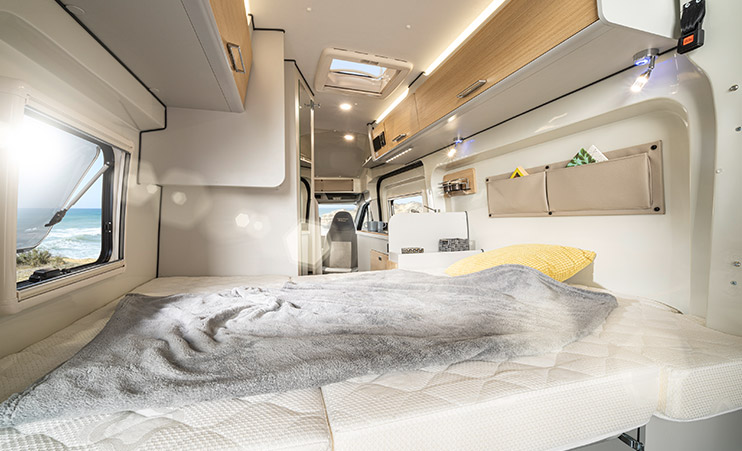

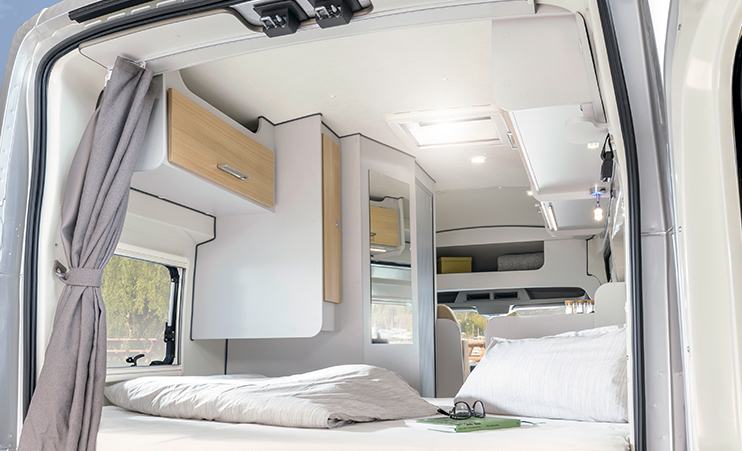

Rear bed | 1890 x 1370 mm |
Beds | 2 (3) Option |
Permissible number of passengers with 3-pt belt | 4 |
Fresh water capacity complete | 80 l |
Wastewater capacity | 60 l |
Gas | 2 x 5 kg |
Battery capacity | 1 x 100 Ah (Lithium) |
Charger | 17 A |
Refrigerator | 70 l |
* For safety reasons, the “technically permissible maximum laden mass” stated in the vehicle registration document must not be exceeded under any circumstances.
** Dimensions in ready-to-drive state as per EU Directive No. 1230/2012: Vehicle with standard equipment according to manufacturer’s specifications including driver (75 kg), 90% of filling quantity for fuel, 100% for water as well as gas (aluminium gas bottle 5 kg), without special equipment.
*** the permissible gross train weight must be observed.
**** with 35 H chassis (option).
***** not in connection with 180 HP motor.
****** excluding DE 560, 570 and Duncan
******* reclining area can be extended to 1850/1750 x 1880 in lower position.
