Davis 620 Lifestyle
-
Model Davis
-
Basic vehicle Fiat Ducato
-
Basic Engine 140 HP Engine
-
Technically permissible overall weight* 3.500 kg
* For safety reasons, the "technically permissible maximum laden mass" stated in the vehicle registration document must not be exceeded under any circumstances.
-
Weight in ready-to-drive state** 3.010 kg
** Dimensions in ready-to-drive state as per EU Directive No. 1230/2012: Vehicle with standard equipment according to manufacturer's specifications including driver (75 kg), 90% of filling quantity for fuel, 100% for water as well as gas (aluminium gas bottle 5 kg), without special equipment.
-
Bed shape Twin beds
-
Total length 6.360 mm
-
Sleeping areas 2/3 (Option)
-
Seating areas 4

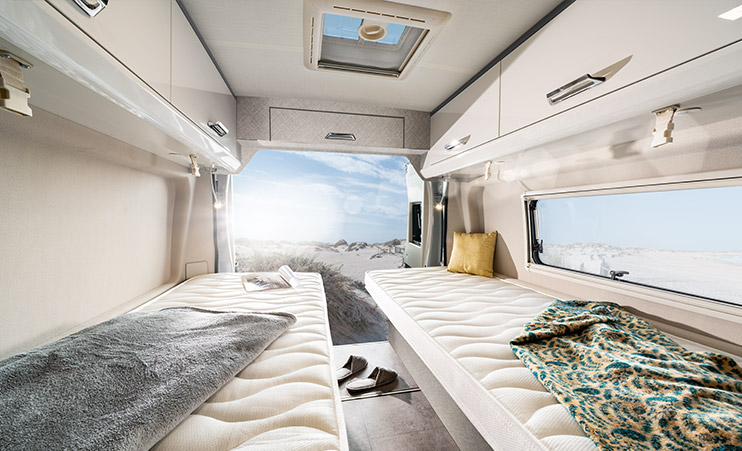

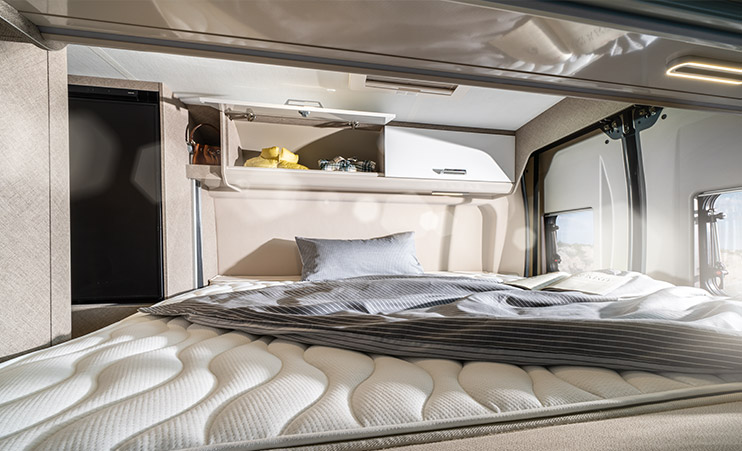

In the Davis 620, you will look forward to it every day. After all, it provides the nightly luxury of two comfortable single beds. And because almost everything is variable at Karmann-Mobil, you have the choice here too. The beds can be joined to form a cosy double bed with a single action. And the same applies during the day.

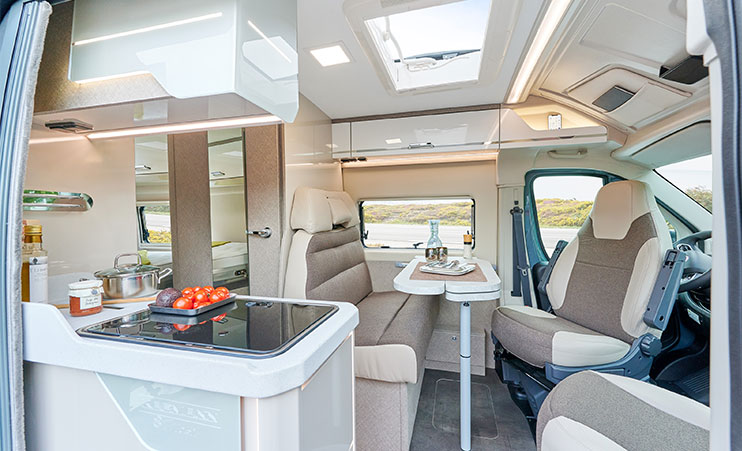

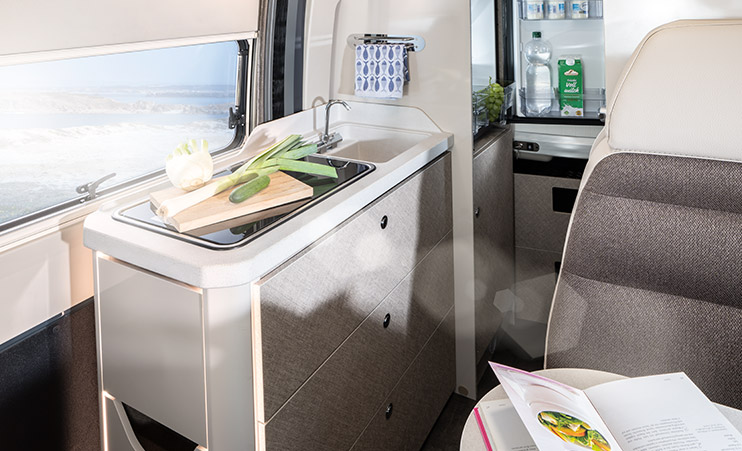

If so, then the large kitchen unit will match your taste. Would you not want to do without an appealing ambience anywhere? Thanks to the elegant furnishings, you always have it with you. Do you like it especially stylish? The Davis Lifestyle furnishings also offer plenty of style and travel pleasure.
Please click the button below to load the content from Matterport Panorama.
With the loading of the panorama you accept the privacy policy of MatterPort
Mehr erfahren
Basic Vehicle
- Driver and Passenger Airbag
- ASB / ESP incl. traction +, hill descent
- Manual air-conditioning system
- Cruise control
- Isofix (excluding DE 540)
- Electric window controls at the front
- Electrically adjustable heated exterior mirrors
- Remote control central locking system
- Fix & Go breakdown kit
- Driver’s cab seat cover in living area upholstery fabric
- Front bumpers black
- Rear bumpers black
Living Area
- Series upholstery Savona
- Background lighting
- Table extension
- Bunk beds (only for DA 591)
- Height-adjustable rear bed with variable storage space (only for DA 630)
- Storage space floor with lashing eyelets and access ramp for bicycles (only for DA 630)
- Elegant, bright interior features with textile appliqués
- LED ambient lighting
- Additional wall unit above the rear doors (for DA 590/620)
- Folding table top
- Window on left side in the rear (for DA 590/620/630)
Installation
| Model: | Davis 620 Lifestyle |
|---|---|
| Basic vehicle | Fiat Ducato 35L // 35H |
| Basic motorization | 2.3 ltr. 103 kW (140 HP) |
| Fuel tank | 75 ltr. Diesel + 19 ltr. AdBlue |
| Technically permissible total weight* | 3500 kg |
| Mass when ready to drive** | 3010 kg |
| Permissible gross train weight with standard motor / higher motorization | 6000 // 6500 kg**** |
| Trailerload, braked*** with standard motor / higher motorization | 2000 / 2500 // 3000 kg**** |
| Total length | 6360 mm |
| Total width | 2050 mm |
| Total height | 2650 mm |
| Internal width | 1860 mm |
| Standing height | 1890 mm |
| Wheel base | 4035 mm |
| Tyres | 215/70 R15 // 225/75 R16C**** |
| Bed conversation seating unit | 1560 x 950 / 500 mm |
| Bed in the Pop-up roof | 1800 x 1200 mm (Option) |
| Rear bed | 1950 x 800 mm 1860 x 800 mm |
| Beds | 2/3 (Option) |
| Permissible number of passengers with 3-pt belt | 4 |
| Fresh water capacity complete | 85 l |
| Wastewater capacity | 75 l |
| Gas | 2 x 7 kg |
| Battery capacity | 1 x 95 Ah |
| Charger | 15 A |
| Refrigerator | 75 l |
* For safety reasons, the “technically permissible maximum laden mass” stated in the vehicle registration document must not be exceeded under any circumstances.
** Dimensions in ready-to-drive state as per EU Directive No. 1230/2012: Vehicle with standard equipment according to manufacturer’s specifications including driver (75 kg), 90% of filling quantity for fuel, 100% for water as well as gas (aluminium gas bottle 5 kg), without special equipment.
*** the permissible gross train weight must be observed.
**** with 35 H chassis (option).
***** not in connection with 180 HP motor.
****** excluding DE 560, 570 and Duncan
******* reclining area can be extended to 1850/1750 x 1880 in lower position.
