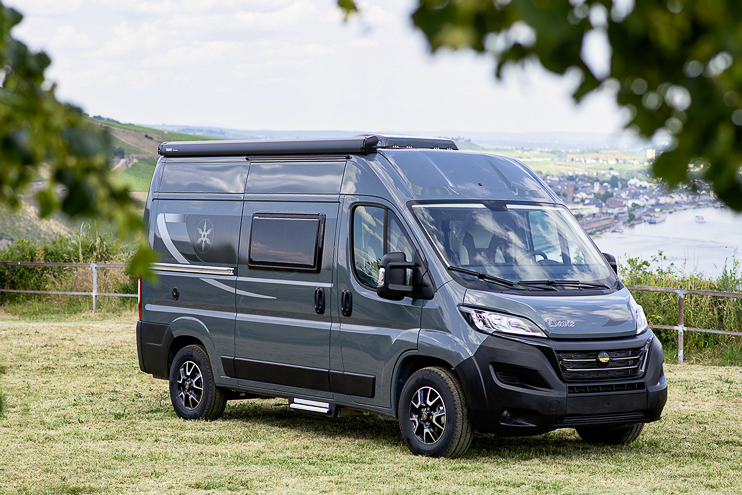

Davis 591 Trendstyle
Previous
Next
-
Model Davis
-
Basic Vehicle Fiat Ducato
-
Basis Engine 140 HP Engine
-
Technically permissible overall weight* 3.500 kg
* For safety reasons, the "technically permissible maximum laden mass" stated in the vehicle registration document must not be exceeded under any circumstances.
-
Weight in ready-to-drive state** 2.945 kg
** Dimensions in ready-to-drive state as per EU Directive No. 1230/2012: Vehicle with standard equipment according to manufacturer's specifications including driver (75 kg), 90% of filling quantity for fuel, 100% for water as well as gas (aluminium gas bottle 5 kg), without special equipment.
-
Bed shape Double bunk bed
-
Total length 5.995 mm
-
Sleeping areas 4 / 5
-
Seating areas 4
Info
Panorama
Serial Equipment Davis Trendstyle
Technical Data
Info
In the large Davis model 591, you can enjoy all these advantages in abundance. And in excess length. About 50 cm more means so much more spaciousness in the large Davis. And you can feel this everywhere: in the spacious windowed bathroom, in the long kitchenette, in the spacious lounge and also at night, when you can spread out wonderfully in your wide double bed. In the Davis 591 you also save space when sleeping. A charming bunk bed makes this possible.Panorama
Please click the button below to load the content from Matterport Panorama.
With the loading of the panorama you accept the privacy policy of MatterPort
Mehr erfahren
Serial Equipment Davis Trendstyle
Basic Vehicle
- Fiat Ducato
- EURO 6D Final incl. soot particle filter
- Driver and Passenger Airbag
- ABS / ESP
- Manual air-conditioning system
- Cruise control
- Captain’s chair seats with armrests
- Isofix
- Power steering
- Adjustable headlights
- Immobiliser
- 3-point seat belt system
- Electric window controls at the front
- Electrically adjustable heated exterior mirrors
- Remote control central locking system
- Fix & Go breakdown kit
- Driver’s cab seat cover in living area upholstery fabric
- Front bumpers black
- Rear bumpers black
Electrical Supply
Technical Data
| Model: | Davis 591 Trendstyle |
|---|---|
| Basic vehicle | Fiat Ducato 35L |
| Basic motorization | 140 HP |
| Fuel tank | 75 ltr. Diesel + 19 ltr. AdBlue |
| Technically permissible total weight* | 3500 kg |
| Mass when ready to drive** | 2945 kg |
| Permissible gross train weight with standard motor / higher motorization | 5800 / 6000 // 6500 kg**** |
| Trailerload, braked*** with standard motor / higher motorization | 2000 / 2500 // 3000 kg**** |
| Total length | 5995 mm |
| Total width | 2050 mm |
| Total height | 2650 mm |
| Internal width | 1860 mm |
| Standing height | 1890 mm |
| Wheel base | 4035 mm |
| Tyres | 225/75 R16C**** |
| Bed conversation seating unit | 1600 x 950 / 500 mm |
| Rear bed | 1860 x 1440 mm |
| Bunk bed | 1860 x 1330 mm |
| Beds | 4 / 5 |
| Permissible number of passengers with 3-pt belt | 4 |
| Fresh water capacity complete | 85 l |
| Wastewater capacity | 75 l |
| Gas | 2 x 7 kg |
| Battery capacity | 1 x 95 Ah |
| Charger | 15 A |
| Refrigerator | 80 l |
* For safety reasons, the “technically permissible maximum laden mass” stated in the vehicle registration document must not be exceeded under any circumstances.
** Dimensions in ready-to-drive state as per EU Directive No. 1230/2012: Vehicle with standard equipment according to manufacturer’s specifications including driver (75 kg), 90% of filling quantity for fuel, 100% for water as well as gas (aluminium gas bottle 5 kg), without special equipment.
*** the permissible gross train weight must be observed.
**** with 35 H chassis (option).
***** not in connection with 180 HP motor.
****** excluding DE 560, 570 and Duncan
******* reclining area can be extended to 1850/1750 x 1880 in lower position.
