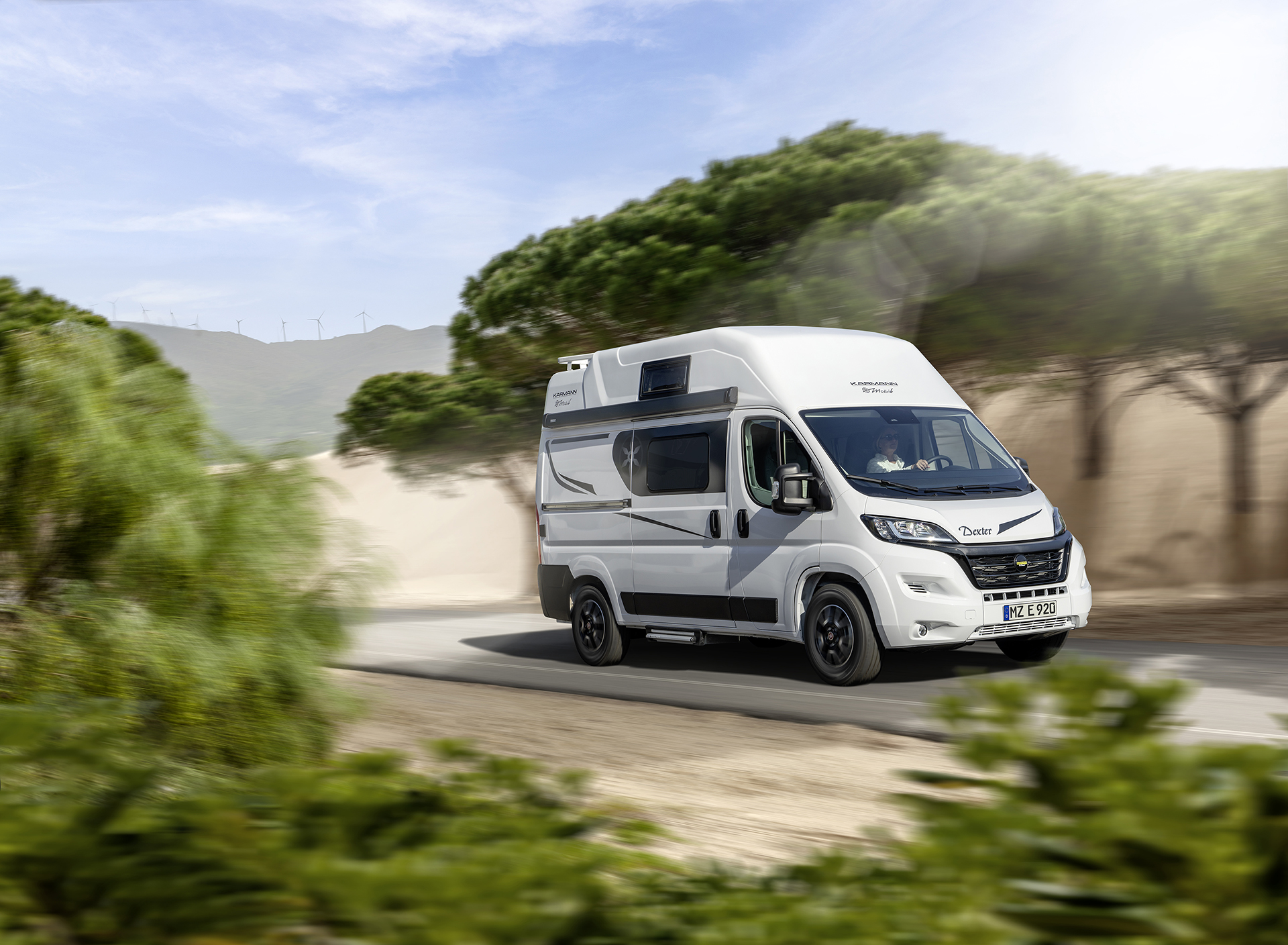

Dexter 550
-
Model Dexter
-
Basic Vehicle Fiat Ducato
-
Basic Engine 120 HP Engine
-
Technically permissible overall weight* 3.500 kg
* For safety reasons, the "technically permissible maximum laden mass" stated in the vehicle registration document must not be exceeded under any circumstances.
-
Weight in ready-to-drive state** 2.953 kg
** Dimensions in ready-to-drive state as per EU Directive No. 1230/2012: Vehicle with standard equipment according to manufacturer's specifications including driver (75 kg), 90% of filling quantity for fuel, 100% for water as well as gas (aluminium gas bottle 5 kg), without special equipment.
-

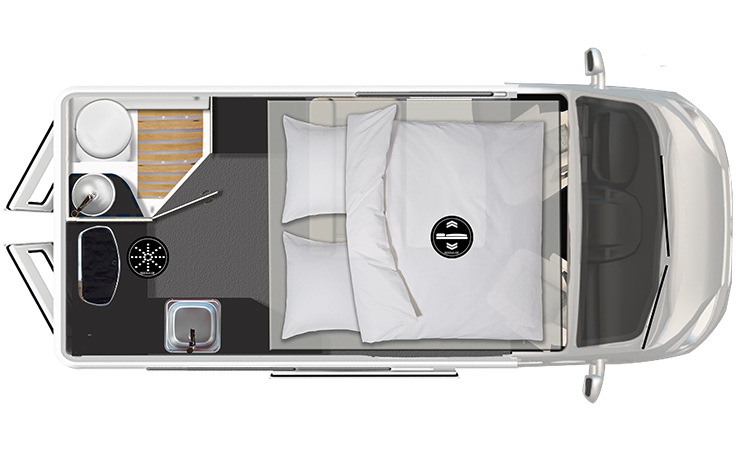

Bed shape Drop-down bed
-
Total length 5.480 mm
-
Sleeping areas 4
-
Seating areas 4
Info
Serial Equipment Dexter
Technical Data
Info

Serial Equipment Dexter
Basic Vehicle
- Fiat Ducato
- EURO 6D Final incl. soot particle filter
- Driver and Passenger Airbag
- ABS / ESP incl traction + hill descent
- Manual air-conditioning system
- Cruise control
- Isofix (excluding DE 600)
- Power steering
- Adjustable headlights
- Immobiliser
- 3-point seat belt system
- Electric window controls at the front
- Electrically adjustable heated exterior mirrors
- Remote control central locking system
- Decorative wheel trims
- Fix & Go breakdown kit
- Driver’s cab seat cover in living area upholstery fabric
- Carpet in the driver’s cab
- Front bumpers black
- Rear bumpers black
Superstructure Exterior
- Side wall and ceiling insulation
- “Skyroof” sliding roof (not in conjunction with adjustable roof) (excluding DE 550, DE 600)
- Insulated upper roof (only for DE 550)
- Body colour Trend white
- Insulated framed windows
- Electric step
- 400 x 400 mm roof hood, with dimming blinds and mosquito net in the rear (only for DE 550)
- 1x Midi Heki (excluding DE 550)
- 2x Mini Heki (excluding DE 550)
- Skyroof (excluding DE 550)
Electrical Supply
- Living area battery
- Automatic electr. charger for super structure / vehicle battery
- CEE external connection for 230 V with automatic circuit breaker
- Ground fault circuit interrupter
- On-board control panel indicating all important functions
- 3x 230 V Sockets
- 1x 12V Sockets
- 2x USB Sockets
- 2/1 Adjustable reading spotlights and USB ports
Technical Data
Model | Dexter 550 |
---|---|
Basic vehicle | Fiat Ducato 35L |
Basic motorization | 2.3 ltr. 89 kW (120 HP) |
Fuel tank | 75 ltr. diesel + 19 ltr. AdBlue |
Technically permissible total weight* | 3500 kg |
Mass when ready to drive** | 2953 kg |
Permissible gross train weight with standard motor / higher motorization | 5500 / 5800 kg |
Trailerload, braked*** with standard motor / higher motorization | 2000 / 2500 kg |
Total length | 5480 mm |
Total width | 2059 mm |
Total height | 2780 mm |
Internal width | 1940 mm |
Standing height | 1950 mm |
Wheel base | 3450 mm |
Tyres | 215/70 R15 |
Lift-up bed | 1950 x 1520 mm |
Bed conversation seating unit | 1900 x 1220 mm |
Beds | 4 |
Permissible number of passengers with 3-pt belt | 4 |
Fresh water capacity complete | 100 l |
Wastewater capacity | 90 l |
Gas | 1 x 11 kg |
Battery capacity | 1 x 120 Ah (Lithium) (optional) |
Charger | 17 A |
Refrigerator | 109 l |
* For safety reasons, the “technically permissible maximum laden mass” stated in the vehicle registration document must not be exceeded under any circumstances.
** Dimensions in ready-to-drive state as per EU Directive No. 1230/2012: Vehicle with standard equipment according to manufacturer’s specifications including driver (75 kg), 90% of filling quantity for fuel, 100% for water as well as gas (aluminium gas bottle 5 kg), without special equipment.
*** the permissible gross train weight must be observed.
**** with 35 H chassis (option).
***** not in connection with 180 HP motor.
****** excluding DE 560, 570 and Duncan
******* reclining area can be extended to 1850/1750 x 1880 in lower position.
